Building works commenced during the summer of 2019 on this extension project, involving 2 separate extensions:

With a new south, east + west facing ground floor Rear Extension, new Kitchen + Living Space.

Plus a separate Side Extension, works which have not started yet.

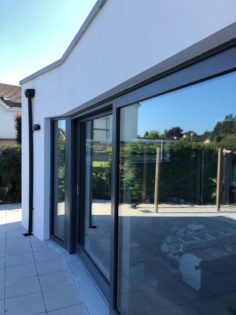

  1. A Ground Floor Rear Extension, in the south and east facing rear garden, while also taking in the view west, to the front of the house. At the new rear elevation is a raised sliding patio door + window, which also forms a large window seat in the new Kitchen and Lining Area, to be used by all the family.
  2. A 1st Floor Side Extension, replacing the existing single storey side Garage, creating a new Master Bedroom + En-Suite, which primarily over looks the River Colligan. The Veranda Space below the 1st Floor Side Extension allows access to the Rear Garden, views through the space and will be used as a sheltered outdoor entertaining space.

There are also some alteration works to the Ground Floor Level of the Existing House, to better connect the spaces through the house and two improve the connection between inside and outside.

Photos below of various stages of progress in the last few weeks….

Great progress by the Builder this week in Abbeyside. Roof Steel + Roof Joists to the Rear Extension are in.
Block work progressing. Plywood roof deck to falls, roof insulation, waterproofing system + roof light next.
Before works begins on the new Side Extension.
#BigWeekOnTheHouse
#FabricFirstApproach
#Extension
#Renovation
#Abbeyside
#Dungarvan
#Construction
#Architect

#PEOPLE + #PLACE
#LIGHT, #SPACE + #MATERIALS
Blockwork to the Extension external wall perimeter roof parapet starting next.
Roof Steel + Roof Joists to the Rear Extension are in.
Block work progressing.
View out towards rear garden. The block work for the window seat has to go in yet….
The Extension Space is taking shape…
The opening in the joists is for the Roof Light.
The view from the new Hall door, entering the new Extension….. The new roof light opening is over head + the Kitchen Island will be on the left side….
The steel post is to support the Rear Door / Window Opening, located at the kink in the rear wall. The top of the post will be the Rear Extension Ceiling Level + top of the opening.
Concrete Floor poured to the New Extension – at + 20mm above Existing Floors to allow for the new Extension polished concrete floor to be finished level with finishes to be fitted to existing floors.
Radon membrane, damp proof membrane DPM, floor insulation (along with under floor services being fitted…)
Existing House Rear Elevation (prior to works).
